| Thermoelectric System | Model.No. | Pc Max (W) |
Current (A) |
Voltage (V) |
Input Power (W) |
Ambient (℃) |
Dimension L × W × H (mm) |
| Air to Air system | AA-125-24 | 125 | 7.5 | 24 | 179 | -10 ~ 50 | 300×152×166 |
| AA-220-24 | 223 | 11 | 24 | 265 | 315×169.6×217 | ||
| Air to air tunnel system | AAT-085-24 | 82 | 4.9 | 24 | 118 | 248×106×152 | |
| Direct to air system | DA-011-05 | 11 | 2 | 5 | 10 | 65×44×56.5 | |
| Plate to air system | PA-160-24 | 160 | 9.5 | 24 | 228 | 300×152×114 | |

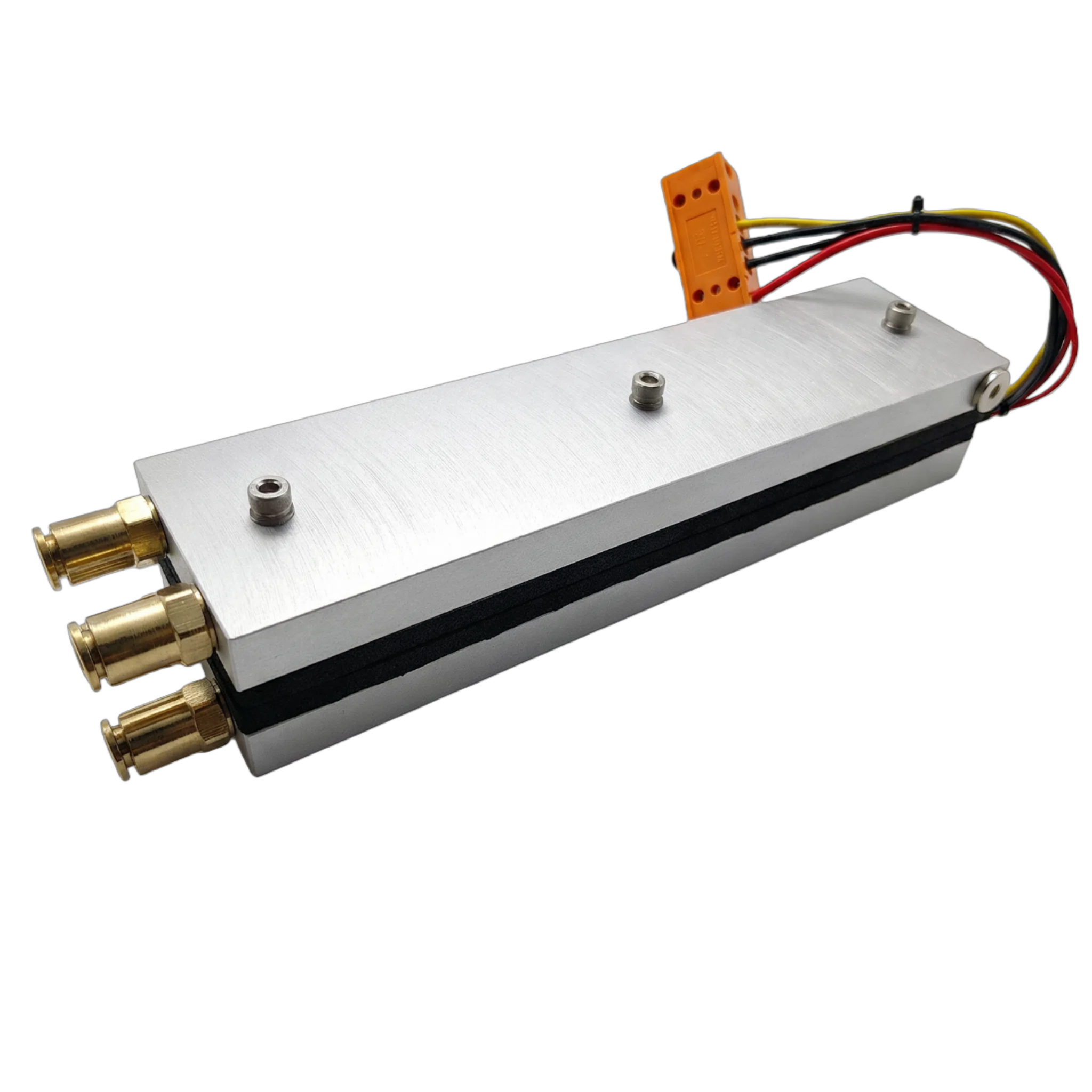

| Plate to liquid system | PL-210-24 | 210 | 8.1 | 24 | 194 | 265×60×44 | |
| Liquid to air system | LA-160-24 | 160 | 9.2 | 24 | 228 | 300×152×108 | |
| Liquid to liquid system | LL-210-24 | 210 | 8.1 | 24 | 194 | 265×66×52 |
The Thermoelectric assembly models listed above represent only a selection of our complete product range. For more TEA models , detailed specifications, or assistance with product selection, please Contact our sales team or Request the full catalog.
