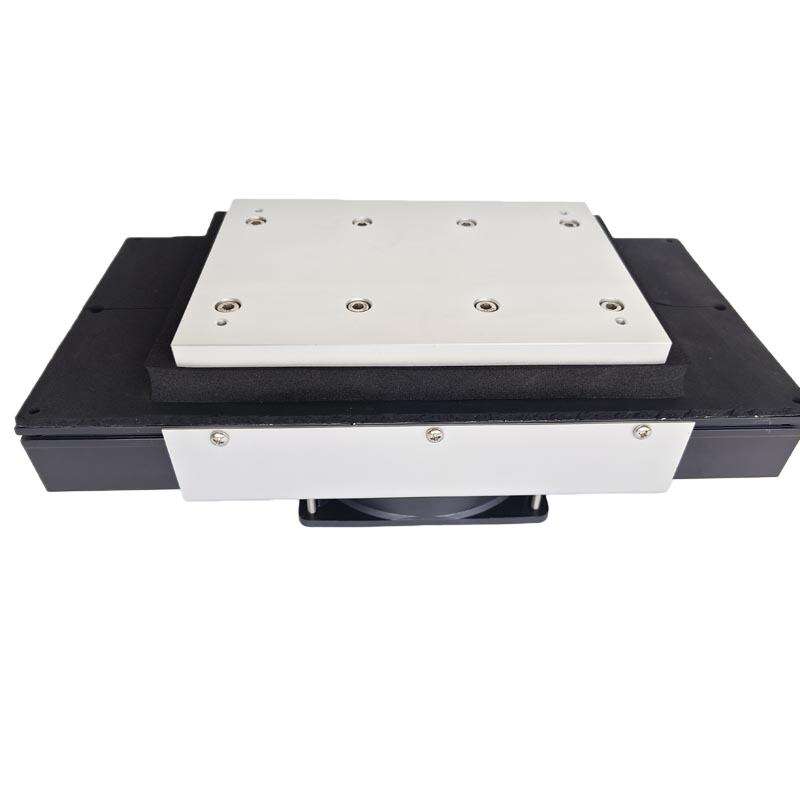

P&N's PA-160-24 thermoelectric plate cooling module delivers robust 160W cooling capacity at 24VDC/9.5A input, achieving an exceptional coefficient of performance (COP) of 0.7 for energy-efficient operation. This Peltier-based conduction cooling system features a precision-machined aluminum cold plate that absorbs heat from sensitive components, while high-density thermoelectric modules pump thermal energy to the hot-side heat exchanger.
The PA-160-24 Peltier assembly allows for a fully sealed chamber design—critical for biohazard containment in medical diagnostics and contamination-sensitive optical/laser applications. With no need for bulky cold-side heat exchangers, our thermoelectric plate cooling systems save valuable space in constrained environments while providing maintenance-free, vibration-free operation.
Key Features
Compatible with water/glycol mixtures
Precise temperature control
Reliable solid-state operation
Build in over-Temp Thermostat
Applications
• Analytical instruments
• Centrifuges
• High-Performance Liquid Chromatography (HPLC)
• Industrial instrumentation
Specifications
|
Max Cooling Power(W) |
160 |
|
Running Current (A) |
9.5 |
|
Nominal Input Voltage (V) |
24 |
|
Max Input Voltage (V) |
27 |
|
Power Input (W) |
228 |
|
Operating Temperature(℃) |
-10 to 60 |
|
Weight (kg) |
3.5 |
|
MTBF(fans-hrs) |
70,000 |
|
Performance Tolerance |
±10% |
Performance curves
Mechanical Drawing
Custom Options
Wire length: specified wire length.
Harness: specified brand & model No.
Fan type: specified brand & model No.
Cold block: specified dimension,size and position of the fixed screw holes.
