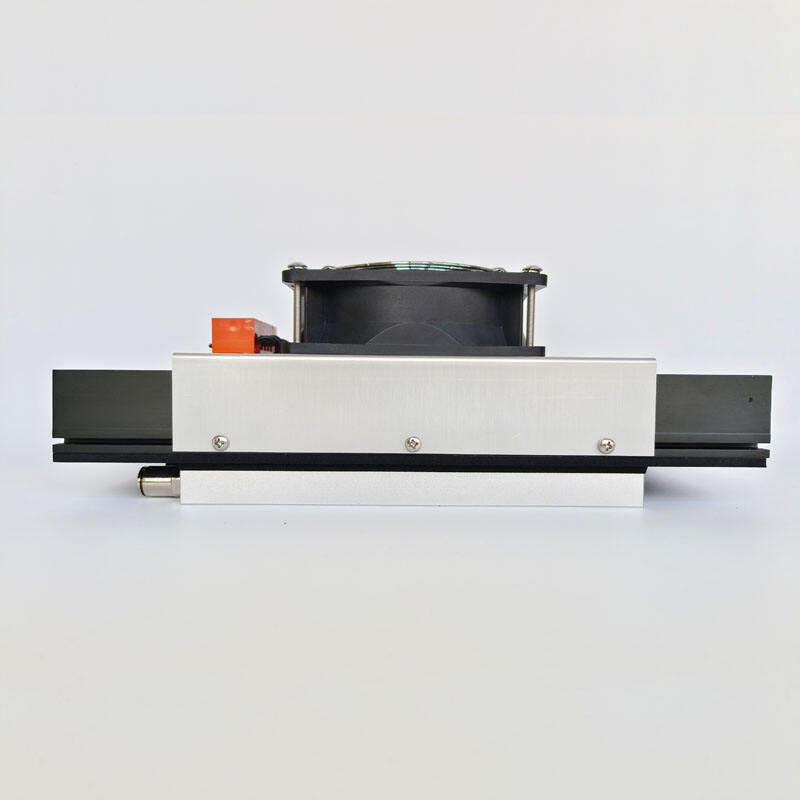

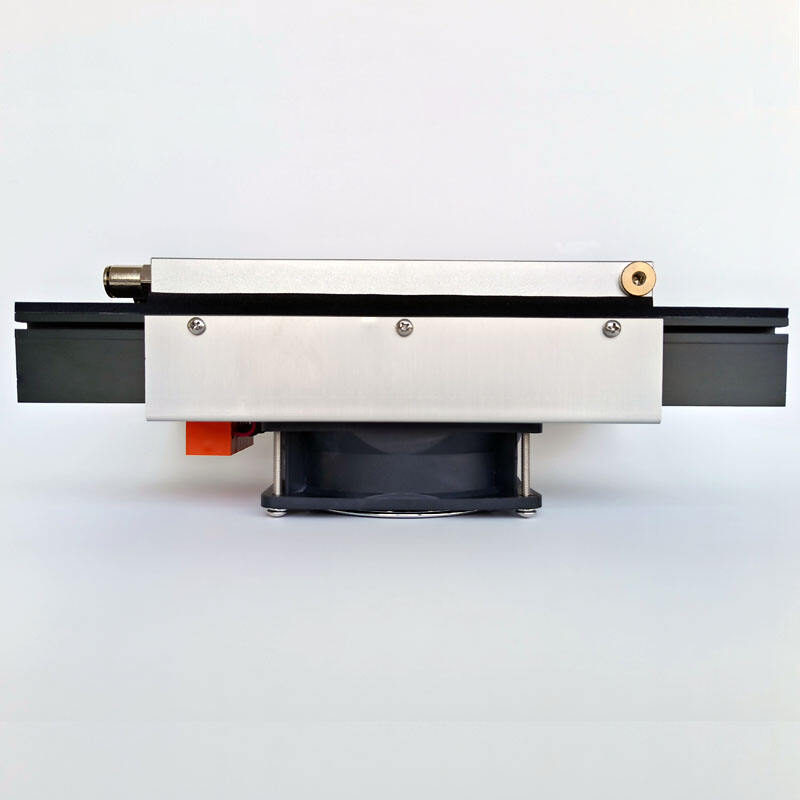

The Peltier-driven LA-160-24 liquid cooling assembly utilizes high-efficiency thermoelectric modules to actively regulate coolant temperature in recirculating systems. Our Peltier coolers are strategically mounted between the liquid heat exchanger (cold side) and finned heatsink (hot side), creating a solid-state heat pump that transfers thermal energy without moving parts.
The thermoelectric modules absorb heat from the circulating liquid via the cold plate heat exchanger, then actively pump it to the air-cooled heatsink assembly, which features optimized airflow design for maximum Peltier heat dissipation. This liquid-to-air TEC system operates on 24VDC, current 9.2A, max cooling power 160W delivering precise temperature control while eliminating compressor noise and vibration - a critical advantage for sensitive laboratory and industrial equipment. The complete Peltier cooling assembly integrates seamlessly with existing pump and plumbing systems, providing maintenance-free operation with superior reliability compared to conventional cooling methods.Use Push-to-connect fitting.
Key Features
Compatible with water/glycol mixtures
Precise temperature control
Reliable solid-state operation
Build in over-Temp Thermostat
Applications
• Analytical instruments
• Laser systems
• Beauty device
• Industrial instrumentation
Specifications
|
Max Cooling Power(W) |
160 |
|
Running Current (A) |
9.2 |
|
Nominal Input Voltage (V) |
24 |
|
Max Input Voltage (V) |
27 |
|
Power Input (W) |
228 |
|
Operating Temperature(℃) |
-10 to 60 |
|
Weight (kg) |
3.5 |
|
MTBF(fans-hrs) |
70,000 |
|
Performance Tolerance |
±10% |

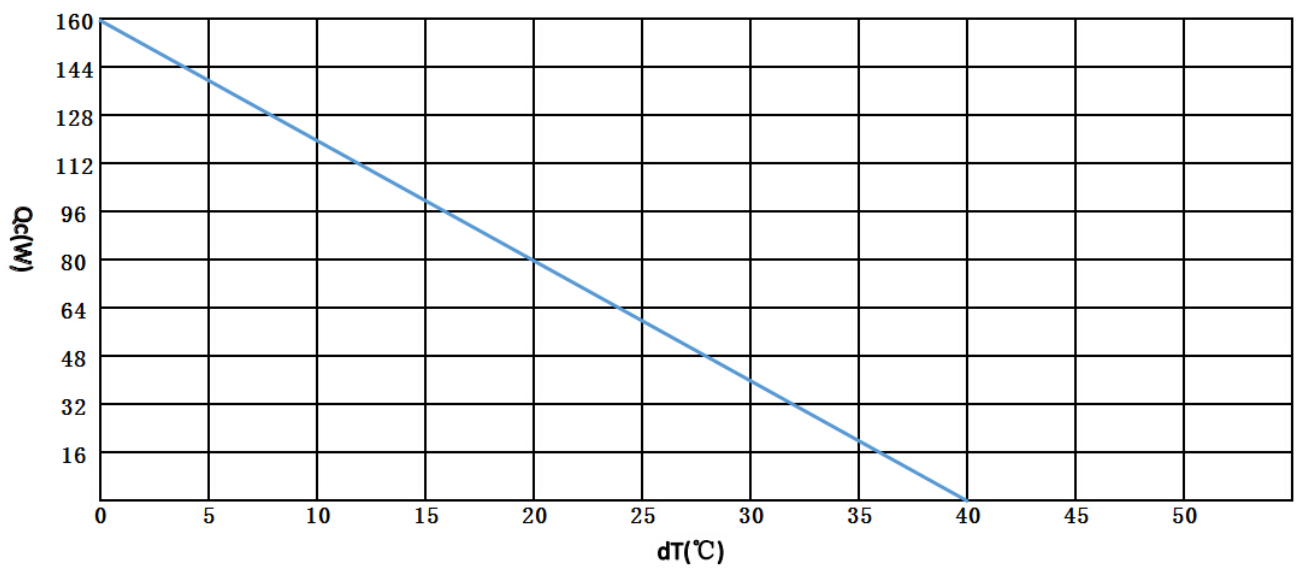

Performance curves

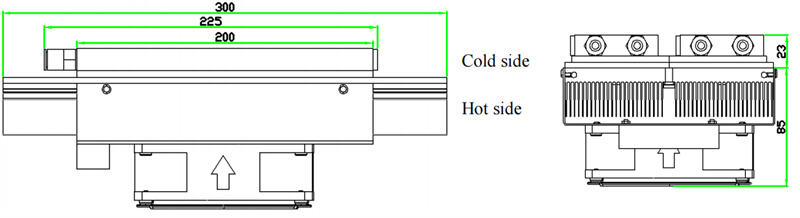

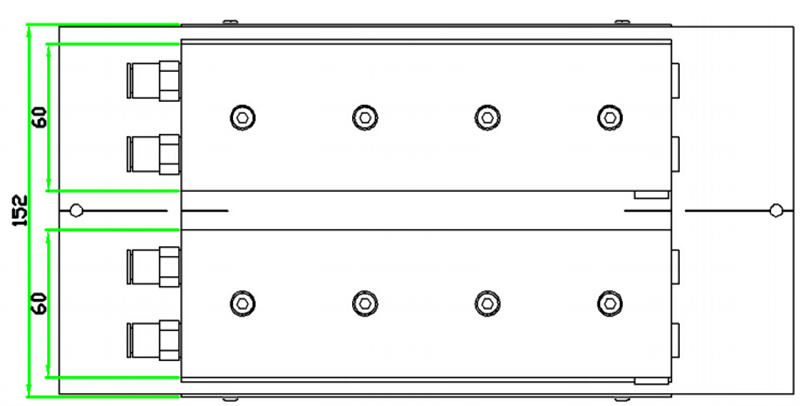

Mechanical Drawing
Custom Options
Wire length: specified wire length.
Harness: specified brand & model No.
Fan type: specified brand & model No.
Connector size: specified.
Liquid block material: standard anodized aluminium, SS304/316 optional.
